KIT ID: 036233B

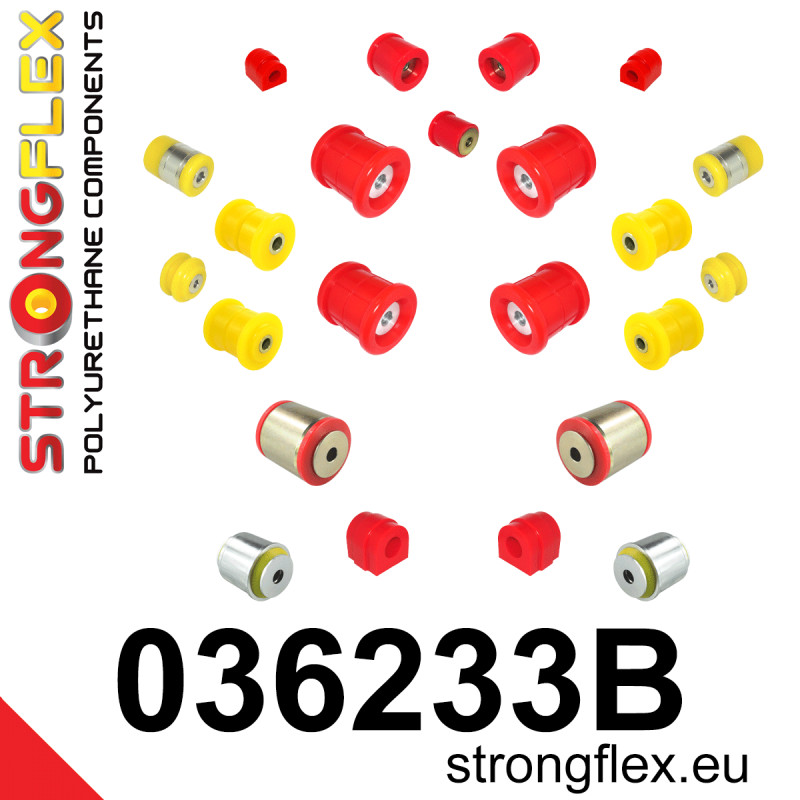

Name: Full suspension bush kit E39 Sedan
Fit:BMW E39 Sedan 95-03Include:2 x 031238B Front anti roll bar bush
or
2 x 031248B Front anti roll bar bush2 x 031420B Front lower tie bar to chassis bush 58mm
or2 x 031638B Front lower tie bar to chassis bush 66mm
2 x 031421A Front inner track control arm bush SPORT2 x 031197A Rear lower trailing arm front bush SPORT2 x 031198A Rear lower trailing arm rear bush SPORT2 x 031744A Rear toe adjust inner bush SPORT2 x 031745A Rear upper arm inner bush SPORT4 x 031715B Rear beam mount bush1 x 031717B Rear diff mount - front bush2 x 031718B Rear diff mount - rear bush2 x 031167B Rear anti roll bar bush
Pcs/prod: 23
Required/car: 1

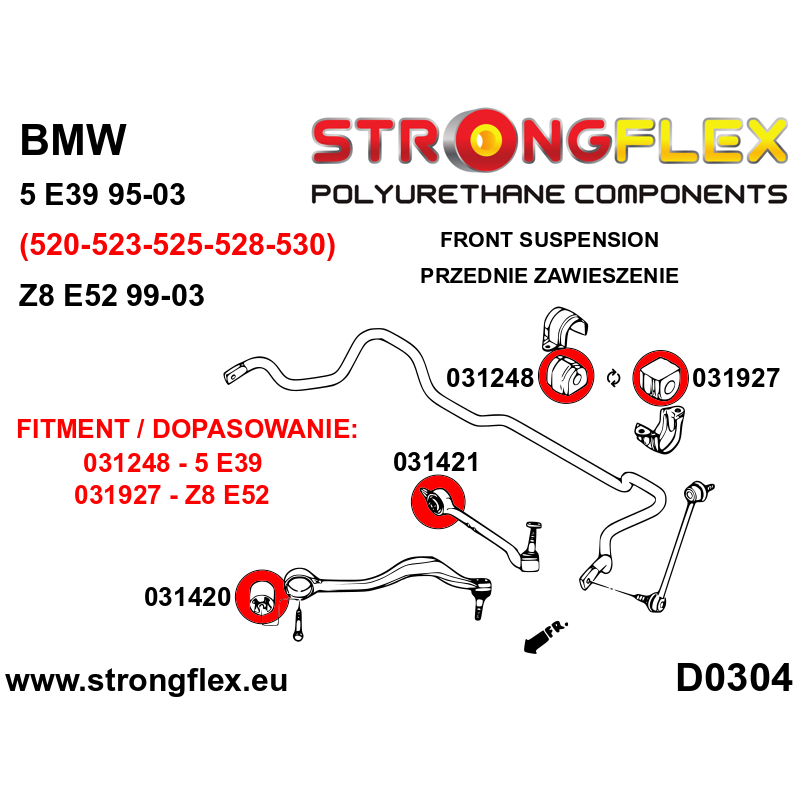

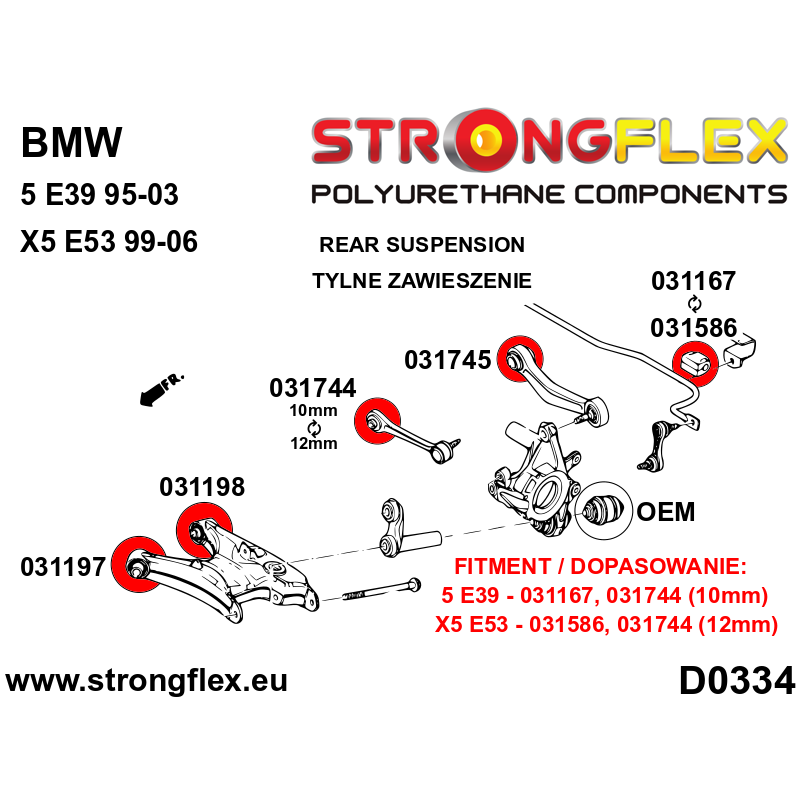

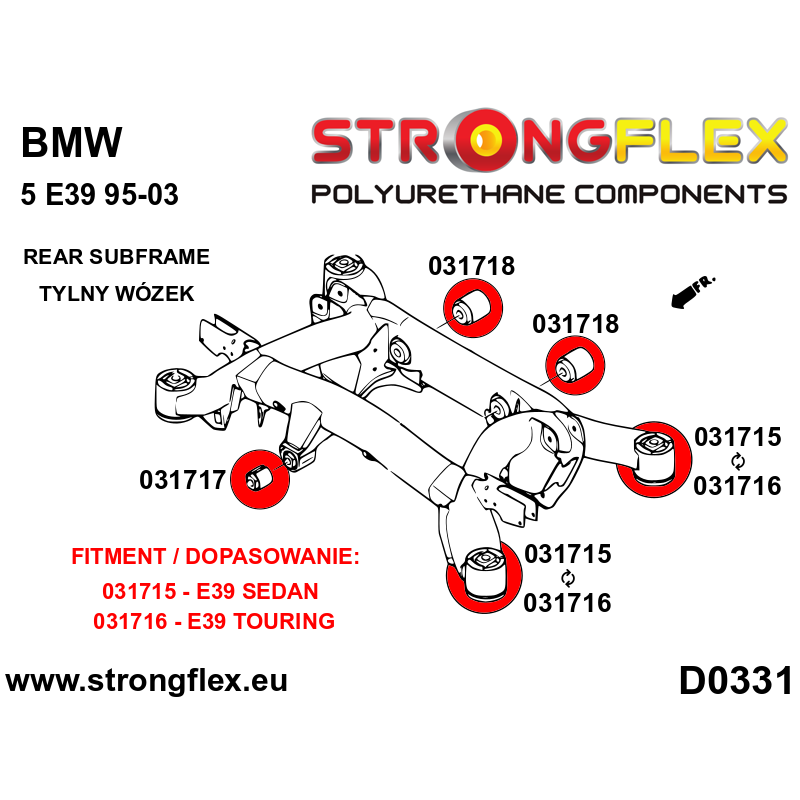

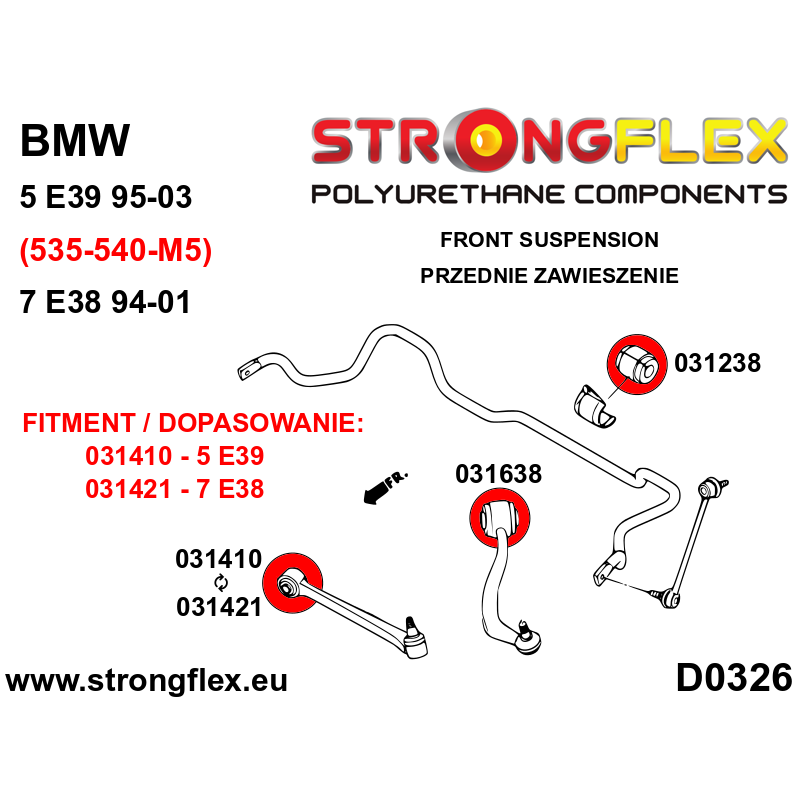

Diagrams:D0304D0326D0331D0334S0307S0308S0310S0311S0312S0313
S0317
NOTE!
There are two types of front stabilizer bushing.
Before buying check the type of bush.
See picture S0307
NOTE!
There are two types of front control arm bush.
031420 - 58mm models 520-530,
031638 - 66mm models 535, 540 & M5.
Before buying check the type of bush.
NOTE!
Fixing screws bushes are available in several sizes for Rear trailing arm bush 031198.
Before buying bush, select the right combination for your model.
031198
12mm - E39 Sedan, E39 Touring
14mm - E39 M5 & M-Pakiet
Hardness: 80ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
